原副标题：通用型CTS能源消耗信息控制系统概要
JGD5 普雷圣
Energy management system Application in Cadillac
1.工程项目简述 Project Overview
本工程项目坐落于浦东，工程建设热购控制系统是为的是对喷漆炼铁厂用水、用水、凉水、开水、石油、冷却水等能源消耗动态新浪网监控，并对炼铁厂前述能源消耗情形依照制造线、制造流程、制造全厂、商业用途展开控制系统化计算方法和预测，同时实现炼铁厂的能源消耗展开分类、分项控制系统预测，同时实现炼铁厂制造线能源消耗考评、工艺技术段能源消耗考评、全厂能源消耗考评，进而同时实现炼铁厂控制系统化管理工作。
This project is located in Pudong, Shanghai. The purpose of this system is to monitor the energy consumption of the paint workshop in real time, such as electricity, industrial water, cold water, hot water, natural gas, compressed air, etc., and to measure and analyze the energy consumption of the workshop according to the production line, process flow, production team and purpose, so as to realize the classification and sub item statistical analysis of the energy consumption of the workshop and realize the production of the workshop Line energy use assessment, process section energy use assessment, team energy use assessment, so as to realize the refine management of workshop.
2.工程项目覆盖范围 Project Scope
能源消耗控制系统监控主硅的JGD5多商业用途仪表板、沿路上炼铁厂34台水锤多组分（量测电表）、9台热测验、30台冷量表、14台轻工业电表、30台水锤多组分（量测冷却水）。
The energy consumption system monitors the multi-function instruments of Acrel in the distribution room, 34 sets flow meters (gas meters), 9 heat meters, 30 cooling meters, 14 industrial water meters and 30 sets flow meters (compressed air).
3.工程项目挑战或难度 Project challenge or difficulty
1.工程项目包含多种量测仪表板的选型和通讯集成融入；
2.现场各种仪表板的安装施工问题和工程项目干系人协调；
3.工程项目的安装时间紧迫，需要非常合理和精细的规划

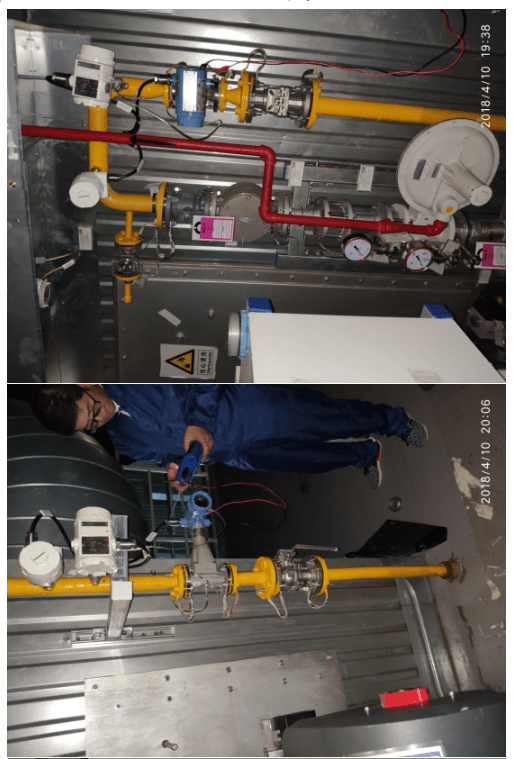

4.燃气管道改造的安全风险
5.控制系统功能的定制化要求
1. The project includes the selection of various measuring instruments and the integration of communication;
2. Coordinate with stakeholders on installation and construction of various instruments on site;
3. The installation time of the project is urgent, which needs very reasonable and fine planning
4. Safety risk of gas pipeline reconstruction
5. Customization requirements of system functions
4.解决方案 Solution

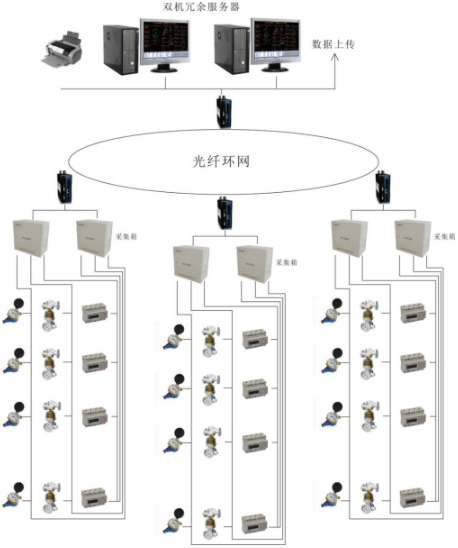

本工程项目我司提供了Acrel-5000能源消耗信息控制系统。整个控制系统采用环网式结构，同时从采集层、传输层、管理工作层全部同时实现双机热冗余设计，在同时实现炼铁厂内部展示的同时同时实现数据上传给厂区能源管理工作大平台。
控制系统主要同时实现的监控功能：
综合能源消耗展示：反映炼铁厂当年能源消耗各展开分类能源消耗和折算为标准煤的综合能源消耗，
能源消耗比较：反映某展开分类能源消耗当日及昨日同期、当月及上月同期、当年及上年同期的能源消耗及对比，增长百分比及增加值；
展示方式：统计支路能源消耗的日、月、周、季、年能源消耗，统计数据可通过柱状图、点线图、堆积图、饼图等多种图表展示；
In this project, our company provides Acrel-5000 energy consumption management system. The whole system adopts ring network structure, and realizes dual machine thermal redundancy design from the acquisition layer, transmission layer and management layer. It can realize the internal display of the workshop and upload the data to the plant energy management platform.
The main monitoring functions of the system are as follows:
Comprehensive energy consumption display: it reflects the comprehensive energy consumption of each category of energy consumption of the workshop in the current year and converted into standard coal,
Energy consumption comparison: reflect the energy consumption and comparison, growth percentage and added value of a certain category of energy consumption on the same day and the same period of yesterday, the same period of current month and last month, the same period of current year and last year;
Display mode: the daily, monthly, weekly, quarterly and annual energy consumption of branch road can be counted, and the statistical data can be displayed by bar chart, point line chart, accumulation chart, pie chart and other charts;
参考文献 Bibliography
1.Solutions For Enterprise Micro-grid System 2020.02
